The latest Huawei Certified ICT Associate HCIA Routing & Switching H12-211 actual real practice exam question and answer (Q&A) dumps are available free, which are helpful for you to pass the Huawei Certified ICT Associate HCIA Routing & Switching H12-211 exam.
Exam Question 141
Refer to the graphic, after the ping 10.1.1.2 command is executed on R1, LSW1 receives a tagged data frame from VLAN 10 on LSW2.
A. TRUE
B. FALSE
Correct Answer:
B. FALSE
Exam Question 142
Refer to the graphic, which of the following statements are true about VLAN configuration on Huawei switches? (Multiple Choice)
A. Client1 belongs to VLAN 10 and the VLAN assignment command on LSW1 is correct.
B. Client2 belongs to VLAN 20, and the MAC address-based VLAN assignment command on LSW1 is correct.
C. Client3 is in VLAN 30, and the VLAN assignment command on LSW1 is correct.
D. Client4 belongs to VLAN 40, and the VLAN assignment command on LSW1 is correct.
E. Client4 does not belong to VLAN 40, and the VLAN assignment command on LSW1 is incorrect.
Correct Answer:
A. Client1 belongs to VLAN 10 and the VLAN assignment command on LSW1 is correct.
B. Client2 belongs to VLAN 20, and the MAC address-based VLAN assignment command on LSW1 is correct.
E. Client4 does not belong to VLAN 40, and the VLAN assignment command on LSW1 is incorrect.
Exam Question 143
According to the following topology and configuration, R1 and R2 are connected through low-speed serial cables and PPP is used to encapsulate data link layer packets. When the Holdtime values of R1 and R2 are different, PPP negotiation and communication fail.
A. TRUE
B. FALSE
Correct Answer:
A. TRUE
Exam Question 144
addressed by offering both strong authentication and data encryption for privacy. The administration aspect is focused on two parts, namely notification originators and proxy forwarders.
A. SNMPv1
B. SNMPv2
C. SNMPv2c
D. SNMPv3
Correct Answer:
D. SNMPv3
Exam Question 145
According to the configuration of single-armed routing in the following figure, the administrative department and finance department can communicate with each other even the proxy ARP is disabled on the subinterface on R1.
A. True
B. False
Correct Answer:
B. False
Exam Question 146

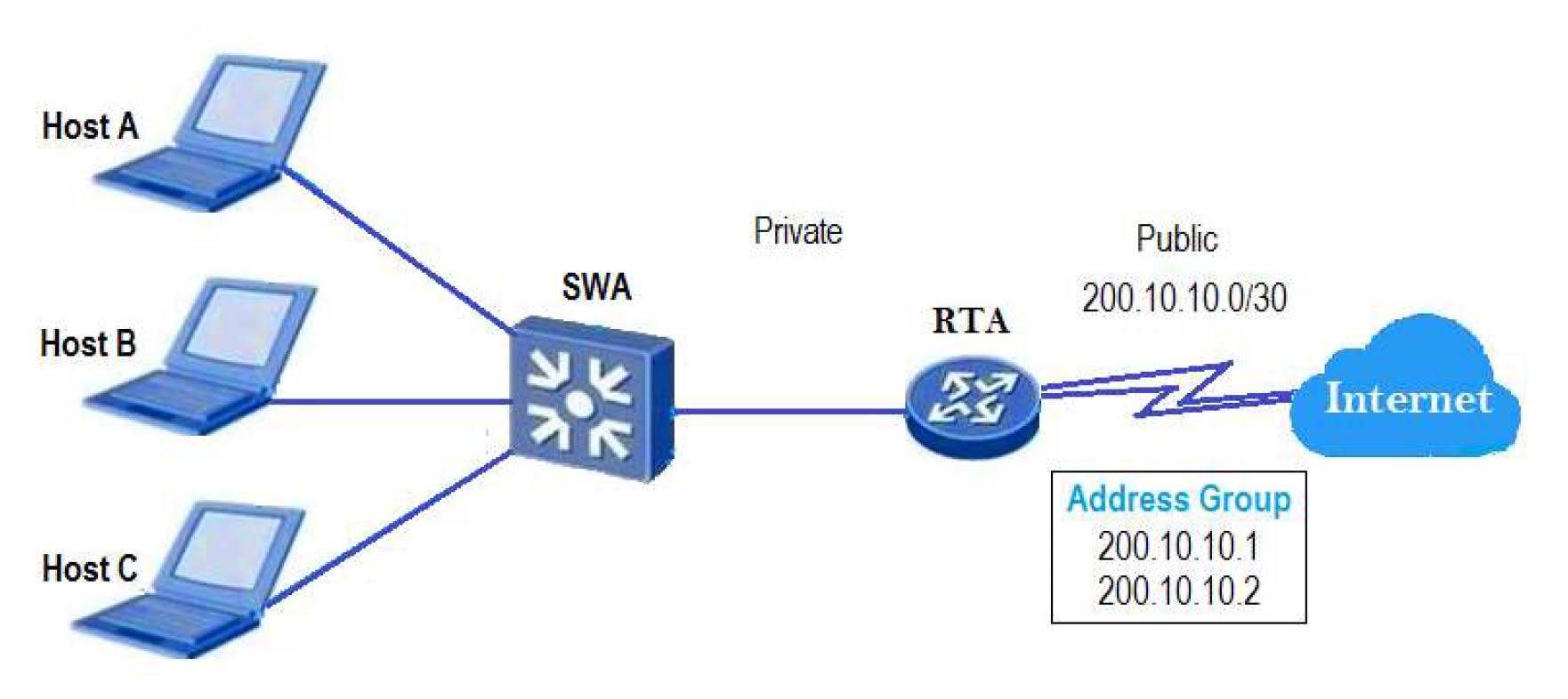

Refer to the graphic.
In the private network, RTA dynamically assigns a public address from the address pool to hosts without port translation. Host C wishes to access the public network while addresses are assigned to Host A and Host B. What will occur as a result?
A. The first public address will be allocated to Host C, and Host A will be forced offline.
B. The last public address will be allocated to Host C, and Host B will be forced offline.
C. Host C will be unable to forward traffic over the public network.
D. All hosts will have access to the public network through pool address swapping.
Correct Answer:
C. Host C will be unable to forward traffic over the public network.
Exam Question 147
After the keepalive function is enabled for a GRE tunnel, the local end of the GRE tunnel sends a keepalive packet to the remote end every 10s.
A. True
B. False
Correct Answer:
B. False
Exam Question 148
In RSTP mode, both alternate and backup ports cannot forward user traffic but can receive, process, and send BPDU.
A. True
B. False
Correct Answer:
A. True
Exam Question 149
Refer to the graphic.
The switch is operating using STP. All default parameters have been maintained. Which port will be assigned a designated port role?
A. G0/0/1 of switch A.
B. G0/0/2 of switch A.
C. E0/0/1 of the hub.
D. E0/0/2 of the hub.
Correct Answer:
A. G0/0/1 of switch A.
Exam Question 150
How can the default route be generated? (Choose all that apply.)
A. Manually configured.
B. Automatically generated by the router.
C. Generated by dynamic routing protocols.
D. Generated by link layer protocols.
Correct Answer:
A. Manually configured.
C. Generated by dynamic routing protocols.
