Exam Question 611
If all OSPF routers in a single area are configured with the same priority value, what value does a router use for the OSPF router ID in the absence of a loopback interface?
A. the IP address of the first Fast Ethernet interface
B. the IP address of the console management interface
C. the highest IP address among its active interfaces
D. the lowest IP address among its active interfaces
E. the priority value until a loopback interface is configured
Correct Answer:
C. the highest IP address among its active interfaces
Exam Question 612
The OSPF Hello protocol performs which of the following tasks? (Choose two.)
A. It provides dynamic neighbor discovery.
B. It detects unreachable neighbors in 90 second intervals.
C. It maintains neighbor relationships.
D. It negotiates correctness parameters between neighboring interfaces.
E. It uses timers to elect the router with the fastest links as the designated router.
F. It broadcasts hello packets throughout the internetwork to discover all routers that are running OSPF.
Correct Answer:
A. It provides dynamic neighbor discovery.
B. It detects unreachable neighbors in 90 second intervals.
C. It maintains neighbor relationships.
Exam Question 613
Refer to the exhibit. What is the next hop address for traffic that is destined to host 10.0.1.5?
A. Loopback 0
B. 10.0.1.4
C. 10.0.1.3
D. 10.0.1.50
Correct Answer:
D. 10.0.1.50
Exam Question 614
Refer to the graphic. R1 is unable to establish an OSPF neighbor relationship with R3. What are possible reasons for this problem? (Choose two.)
A. All of the routers need to be configured for backbone Area 1.
B. R1 and R2 are the DR and BDR, so OSPF will not establish neighbor adjacency with R3.
C. A static route has been configured from R1 to R3 and prevents the neighbor adjacency from being established.
D. The hello and dead interval timers are not set to the same values on R1 and R3.
E. EIGRP is also configured on these routers with a lower administrative distance.
F. R1 and R3 are configured in different areas.
Correct Answer:
D. The hello and dead interval timers are not set to the same values on R1 and R3.
E. EIGRP is also configured on these routers with a lower administrative distance.
F. R1 and R3 are configured in different areas.
Answer Description:
This question is to examine the conditions for OSPF to create neighborhood. So as to make the two routers become neighbors, each router must be matched with the following items:
- The area ID and its types
- Hello and failure time interval timer
- OSPF Password (Optional)
Exam Question 615
Refer to the exhibit. Which command configures a floating static route to provide a backup to the primary link?
A. ip route 209.165.200.224 255.255.255.224 209.165.202.129 254
B. ip route 209.165.201.0 255.255.255.224 209.165.202.130
C. ip route 0.0.0.0 0.0.0.0 209.165.200.224
D. ip route 0.0.0.0 0.0.0.0 209.165.202.131
Correct Answer:
A. ip route 209.165.200.224 255.255.255.224 209.165.202.129 254
Exam Question 616
Refer to the exhibit. An engineer configured the New York router with static routes that point to the Atlanta and Washington sites. Which command must be configured on the Atlanta and Washington routers so that both sites are able to reach the loopback2 interface on the New York router?
A. ipv6 route::/0 Serial 0/0/0
B. ipv6 route::/0 Serial 0/0/1
C. ipv6 route:0/0 Serial 0/0/0
D. ip route 0.0.0.0 0.0.0.0 Serial 0/0/0
Correct Answer:
A. ipv6 route::/0 Serial 0/0/0
Answer Description:
Exam Question 617
Which feature or protocol is required for an IP SLA to measure UDP jitter?
A. LLDP
B. EEM
C. CDP
D. NTP
Correct Answer:
D. NTP
Exam Question 618
Refer to the exhibit. Which feature is enabled by this configuration?
R1(config)#ip nat pool cisco 10.1.1.0 10.1.1.50 255.255.255.0
A. static NAT translation
B. a DHCP pool
C. a dynamic NAT address pool
D. PAT
Correct Answer:
C. a dynamic NAT address pool
Exam Question 619
Which NAT term is defined as a group of addresses available for NAT use?
A. NAT pool
B. dynamic NAT
C. static NAT
D. one-way NAT
Correct Answer:
A. NAT pool
Exam Question 620

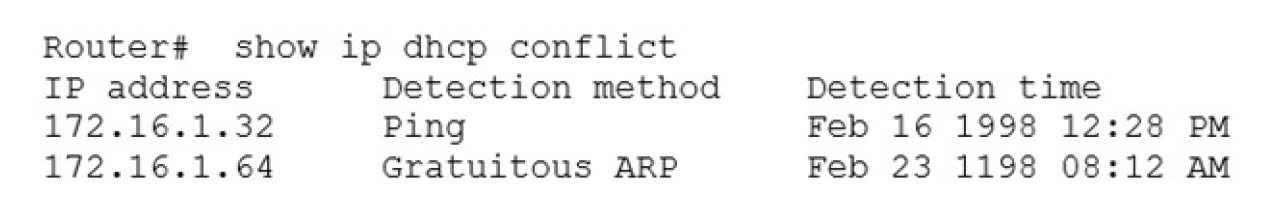

Refer to the exhibit. Which rule does the DHCP server use when there is an IP address conflict?
A. The address is removed from the pool until the conflict is resolved.
B. The address remains in the pool until the conflict is resolved.
C. Only the IP detected by Gratuitous ARP is removed from the pool.
D. Only the IP detected by Ping is removed from the pool.
E. The IP will be shown, even after the conflict is resolved.
Correct Answer:
A. The address is removed from the pool until the conflict is resolved.
Answer Description:
An address conflict occurs when two hosts use the same IP address. During address assignment, DHCP checks for conflicts using ping and gratuitous ARP. If a conflict is detected, the address is removed from the pool. The address will not be assigned until the administrator resolves the conflict.
