This article describes how to monitor Virtual IP current bandwidth utilization using FortiView Destination Firewall Objects.
Table of Contents
Scope
FortiGate.
Solution
Realtime bandwidth utilization, Sessions, Source IP, etc., of configured and active Virtual IP, can be monitored using FortiView Destination Firewall Objects.
To enable, add Widget or Monitor under Dashboard or FortiView.
Note that this will only show the real-time (now) utilization of the Destination Firewall Objects.
Selecting other timeframes is not supported.
The below example assumes that there is already a Virtual IP configured and used on the Firewall Policy.
Add a Widget on the Dashboard
Step 1: Go to Dashboard > Network > Add Widget.

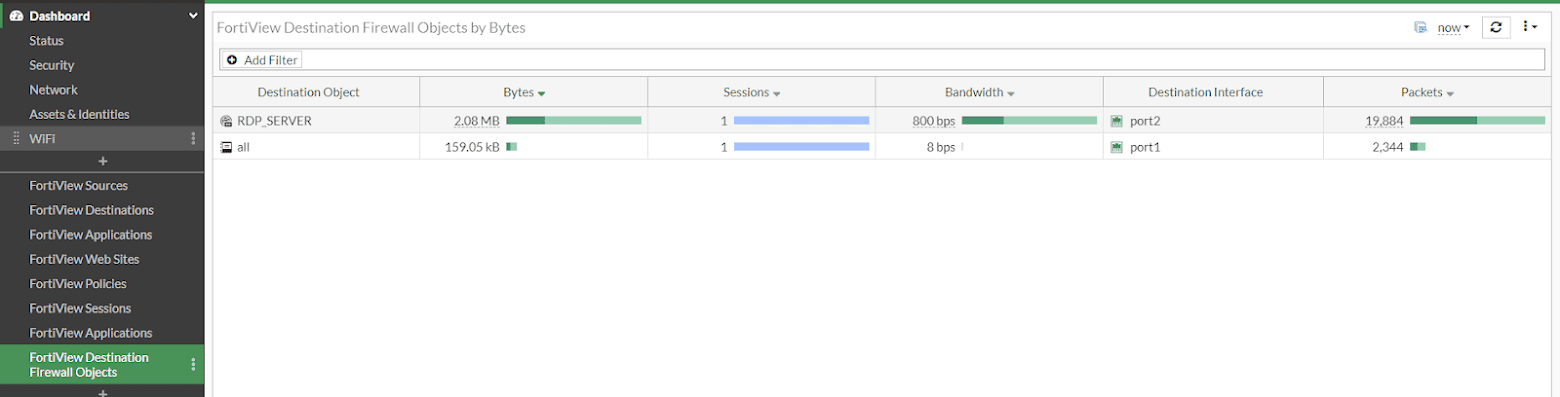

Step 2: Search for ‘destination‘ and select/add ‘FortiView Destination Firewall Objects‘. Then ‘Add Widget‘.
Add Monitor on FortiView
Step 1: Go to Dashboard.
Step 2: Select the ‘+’ sign on FortiView then ‘Add Monitor’.
Step 3: Search for ‘destination’ and select/add ‘FortiView Destination Firewall Objects’. Then ‘Add Widget’.
Drill Down Details
Step 1: Filter Virtual IP name.
Step 2: Select to drill down or ‘Right click’ and select ‘Drill Down to Details’.
