Solved: AIO Cooler Intake and Exhaust: Which Configuration Best for Cooling Efficiency

Installing an All in One (AIO) Cooler can be done in two ways: as an intake or as an exhaust. This can be accomplished by changing the direction of the radiator fans. It’s important to note that both methods effectively cool your CPU, but they go about it in slightly different ways.

When you set up an AIO Cooler as an intake, it’s primarily beneficial for cooling the CPU. On the other hand, configuring it as an exhaust is more advantageous for cooling other components like the GPU. Keep in mind, though, that the impact on cooling performance is minimal because it’s not only the radiator fan but also the overall airflow within the case that contributes to temperature regulation.

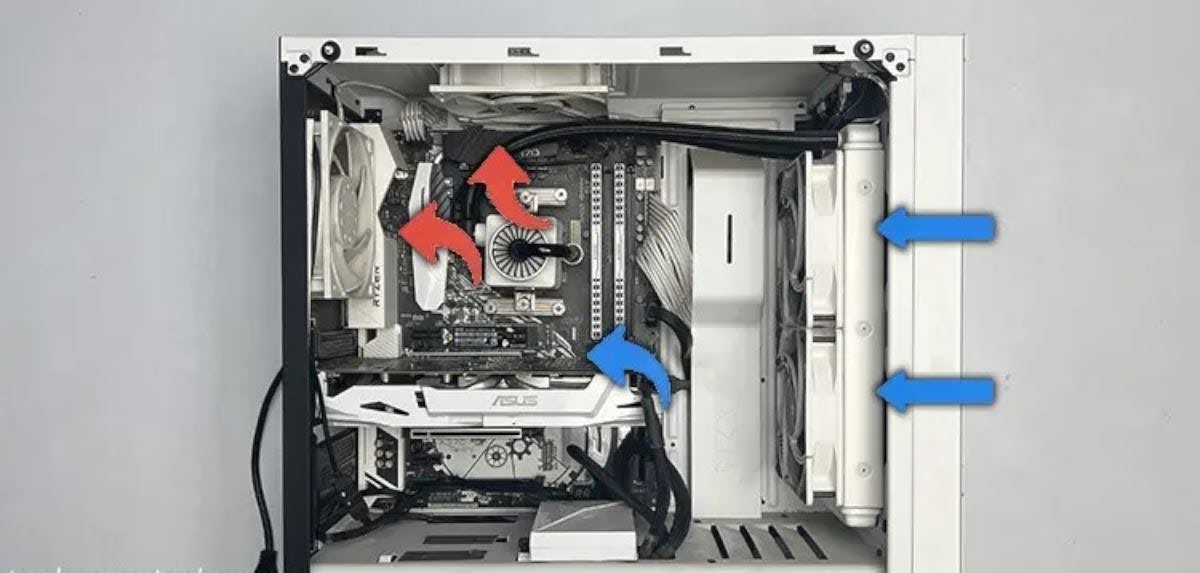

What matters more is the ease of installation and the proper positioning of the radiator. For instance, I often choose to set up the AIO Cooler as an intake when placing the radiator at the front of the case. Conversely, I opt for an exhaust configuration when the radiator is positioned at the top. Through experience, I’ve observed that the performance difference between intake and exhaust setups is minimal.

Solved: AIO Cooler Intake and Exhaust: Which Configuration Best for Cooling Efficiency

In some cases, certain AIO coolers fit better in one configuration than the other within my PC cases. As a result, I prioritize the configuration that offers the best fit and airflow for my specific setup. So, whether you choose to have your AIO Cooler function as an intake or exhaust, remember that factors like radiator placement and ease of installation play crucial roles in making the right decision.

There are a few key factors that influence the choice of AIO cooler configuration for your setup. These factors include where the cooler is positioned, how easy it is to install, the way air flows within your computer case, and how effectively each configuration cools your components. Let’s take a closer look at each of these factors to help you make the right decision.


Figuring out where to position your AIO Cooler matters. Depending on your computer case, some spots might work better than others. For example, placing the AIO Cooler at the front of your case as an intake or at the top as an exhaust can impact airflow and cooling.

Placement of AIO Cooler

The placement of your AIO cooler plays a significant role in its effectiveness. Typically, in a computer, fans at the front or bottom bring in cool air (intake), while those at the rear or top push out warm air (exhaust). This setup takes advantage of the fact that hot air naturally rises to the upper parts of the case.

When deciding whether to configure your AIO cooler as an intake or exhaust, consider the following:

  • AIO Intake Configuration: If you choose to set up your AIO radiator as an intake, place it at the front or the side of the case. Avoid installing it at the bottom, as this could lead to air bubbles getting trapped near the pump, affecting cooling performance and causing pump noises.
  • AIO Exhaust Configuration: To use your AIO cooler as an exhaust, position its radiator on the top of the case, directly above the CPU. You could also install it on the rear panel, although this is less common due to potential obstructions caused by the motherboard’s I/O shield.

Keep in mind that proper placement is crucial for efficient cooling and noise reduction. The goal is to create a smooth airflow that helps dissipate heat effectively while avoiding any disturbances that might hinder your system’s performance.

Installation Difficulty

Some configurations might be easier to install than others. The way you set up your AIO Cooler can affect how smoothly the installation process goes. It’s important to choose a configuration that aligns with your comfort level and expertise.

AIO Cooler Installation Difficulty

Figuring out how to set up your AIO cooler – whether as an intake or exhaust – involves considering your motherboard, case, and the cooler you’ve got. Here’s a closer look:

  • AIO Cooler Orientation: You’ve got some flexibility in how you position the AIO radiator, but avoid letting air bubbles gather at the pump. Plus, be careful not to bend the tubes too much, as this could lead to coolant leaks. The tubes’ length, your PC’s parts, case size, and fan slot locations all play a role in finding the best setup.
  • Tube Length and Component Profile: Depending on the tubes’ length and the shape of your PC components, your AIO cooler might fit better in certain orientations. For instance, if your tubes are shorter, setting up an exhaust with the radiator at the top might be easier. On the other hand, longer tubes could work well for an intake configuration.
  • Case Fan Slots: Don’t forget to check the available fan slots in your case. If there’s only one slot at the top, fitting a two-fan radiator as an exhaust might not be possible.
  • Bend, Stretch, Squeeze: Above all, avoid stressing the tubes. You don’t want to stretch, bend, or squeeze them too much. This can negatively impact both the cooling efficiency and the durability of your AIO cooler.

Case Fan Slots

Remember, when it comes to cooling efficiency, the difference isn’t huge if you have sufficient case fans. So, as long as you avoid stressing those tubes and consider the placement options based on your hardware, you’re good to go. Whether you choose intake or exhaust, both can work well with proper case airflow.

Case Airflow

The airflow inside your computer case plays a big role in overall temperature control. How air moves through the case, around components, and past the AIO Cooler can affect how efficiently it cools down your CPU and other parts.

Case Airflow of AIO Cooler

When it comes to the way air moves inside your case, think of the radiator fans as being like regular case fans, but a bit less effective. The radiator adds a bit of turbulence to the airflow and warms up the air as it passes through.

To get things just right, you want a balanced number of intake and exhaust case fans, especially depending on how you’ve set up the AIO cooler. Also, make sure your case has enough slots for all these fans to fit.

If you’ve set up the AIO cooler as an intake at the front, it’s a good idea to have more intake fans at the bottom or side, and exhaust fans at both the back and the top. On the other hand, if your AIO cooler is an exhaust on the top, you’ll want another exhaust at the back, and a bunch of intake fans at the front.

Remember, it’s all about making sure the air flows smoothly through your case, keeping things cool and working well.

Cooling Efficiency

Ultimately, the primary goal of your AIO Cooler is to keep your components cool. The way you configure it can impact how well it accomplishes this task. AIO coolers work in conjunction with other cooling components in your system, so finding the right balance is key.

Cooling Efficiency of AIO Cooler

Let’s dive into how an AIO cooler’s positioning affects its cooling effectiveness:

  • AIO Intake Configuration: When you set up your AIO cooler as an intake, cooler external air enters the case through the radiator fins. This cooler air helps slightly lower the temperature of the CPU. However, the air inside the radiator absorbs some heat from the coolant, which means the air introduced into the case becomes somewhat warmer.
  • AIO Exhaust Configuration: Opting for an AIO cooler in an exhaust setup involves warmer internal air passing through the radiator. This may not be as effective in cooling the liquid and, in turn, the CPU. Nevertheless, the advantage is that the warmer air is expelled from the case, preventing it from affecting other internal components like the GPU.

While a small change in CPU temperature doesn’t significantly impact performance, the same doesn’t hold true for the GPU. Especially if you’re a gamer or involved in graphics-heavy tasks, maintaining a lower GPU temperature can boost overall performance. This scenario leans more towards setting up the AIO cooler as an exhaust.

That said, with a sufficient number of case fans in place, the difference in temperatures for both the CPU and GPU is relatively minor (around 2-5°C). This means that unless you’re aiming for very specific performance goals, you don’t need to overly stress about the cooling performance. The cooling setup’s effectiveness largely depends on case airflow, so keep that in mind when making your decision.


Considering these factors will help you determine which AIO Cooler configuration is the best fit for your specific needs. Remember, it’s all about optimizing cooling performance while taking into account the layout of your case and your own installation preferences.

So, when it comes down to it, using your AIO cooler’s radiator as an intake or exhaust doesn’t really make a big difference in how well things work.

What matters more is where you put the radiator based on your motherboard and case setup. If it fits more comfortably on the top, then use it as an exhaust. If it fits better on the front, set it up as an intake.

Just remember, you need to have enough case fans in the right spots to make sure the air flows smoothly inside your case. And if the radiator fits well in both spots without any tight bends in the tubes, you can go with whichever setup you like. The important thing is to keep things cool and working well.
