How to troubleshoot for SSO Remote Role does not match with FPC role

This article describes how to troubleshoot for SSO ‘Remote Role does not match with FPC role’ error message.

Sample error message:

Scope

FortiPortal v7.2 and above

Troubleshooting

Use SAML debugging browser extension (Eg: SAML Tracer) to verify the SAML Attributes:

Verify if the Identity Provider (IdP) server is passing the correct Role attribute to FortiPortal.
Verify if FortiPortal has the correct SSO Role/Profile configured: FortiPortal (Administrator) GUI > System > Settings > Authentication > Edit Remote Server > View SSO Profiles.

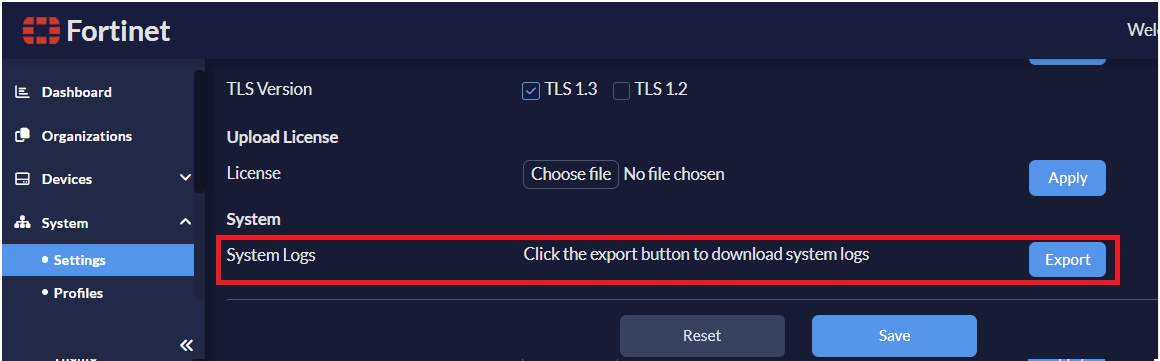

Analyze FortiPortal System Logs for verbose debug output: FortiPortal (Administrator) GUI > System > Settings > General > System Logs > Export.

In this example, the IdP server is passing SSO role ‘sso_cust_read’ but FortiPortal showing ‘no matched role’ in debug logs
This is due to the FortiPortal SSO Role/Profile list not having ‘sso_cust_read’.

Solution

Proceed to create a new FortiPortal SSO Role/Profile ‘sso_cust_read’ -> Save.

Once done, proceed to log in with the SSO user and verify the result:
